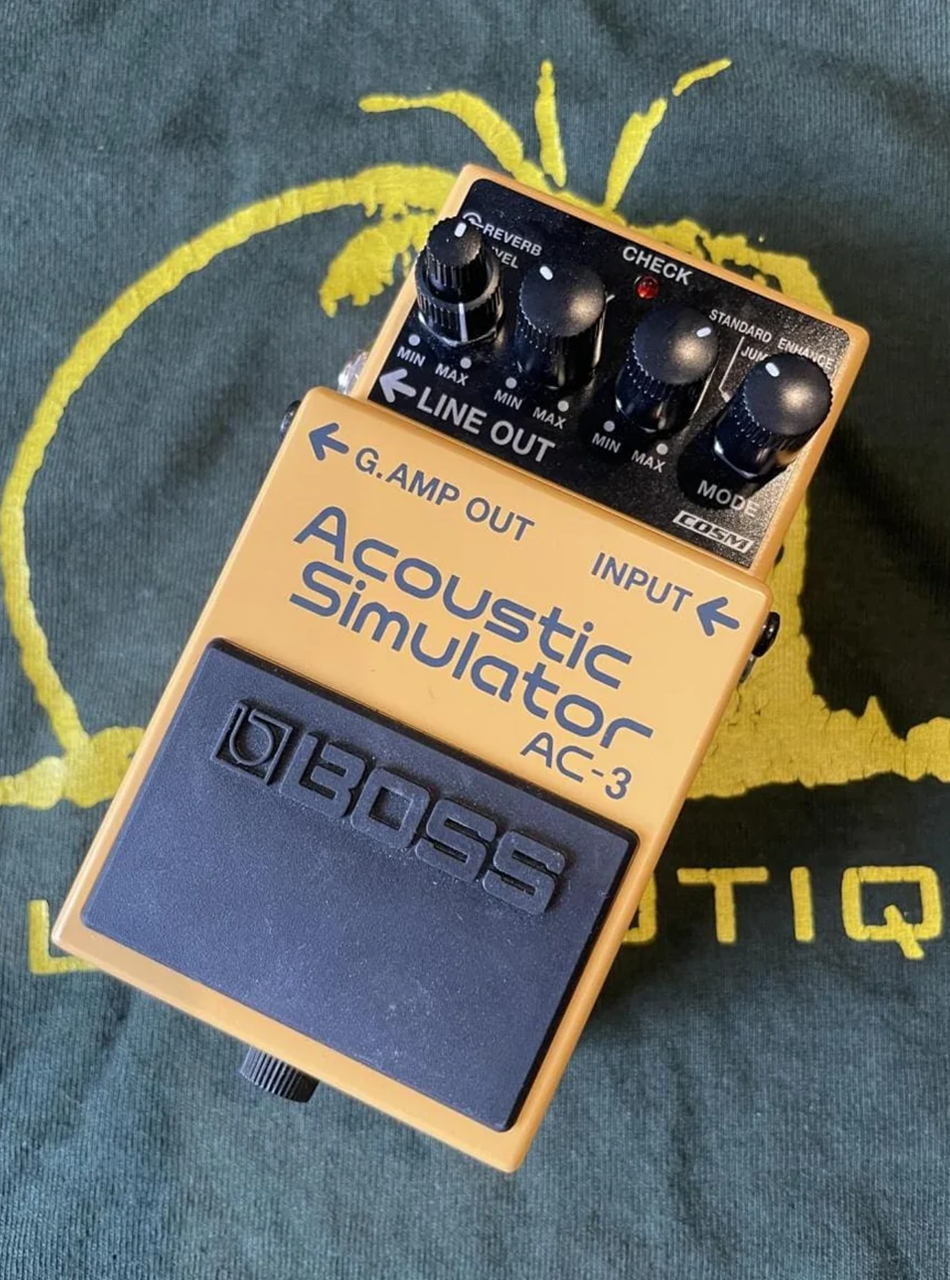

The Boss AC-3 Acoustic Simulator transforms an electric guitar signal into the character of an acoustic guitar, with four selectable body modes and dedicated outputs for flexible amp routing.
Type
Acoustic guitar simulator effects pedal
Model
AC-3 Acoustic Simulator
Manufacturer
Boss
Country of Manufacture
Taiwan
Era
2000s–present
Controls
Reverb, Level, Body, Top, Mode selector
Input
1/4" Input
Output
1/4" Line Out, 1/4" G.Amp Out
Notable Features
Four acoustic simulation modes: Standard, Jumbo, Enhanced and Piezo. Body and Top controls independently shape the resonance and high-frequency character, while the onboard reverb adds acoustic-style ambience. Separate Line and Guitar Amp outputs allow the simulated acoustic signal to be routed directly to a PA, mixer or acoustic amplifier while retaining flexible guitar-amp routing.
