Mindprint DTC

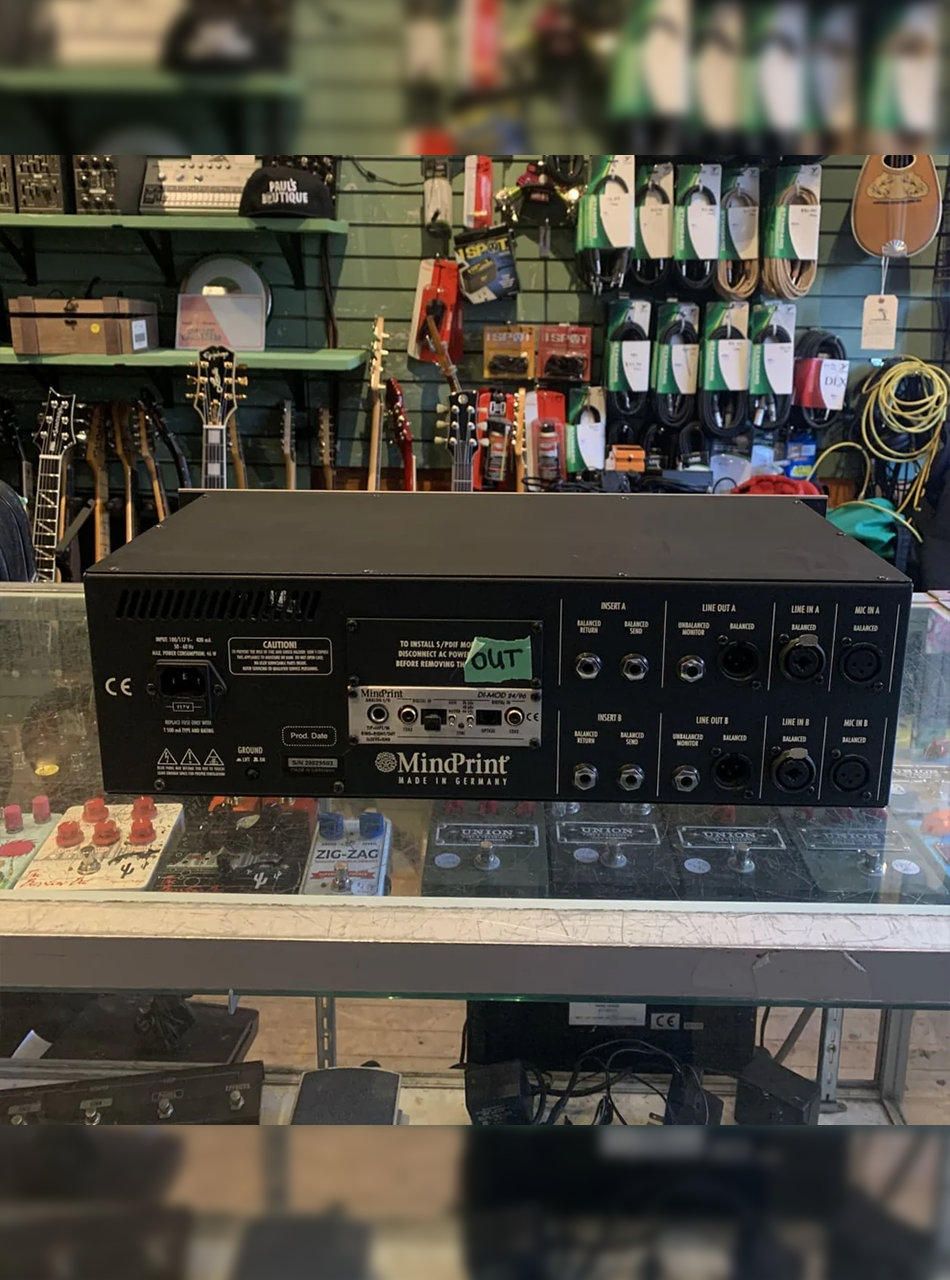

MindPrint DTC Dual Tube Channel with DiMod Digital Outputs. This is a very early DiMod with the factory error of the out/in both being labelled as in. There is tape marking the Out. The Mindprint DTC (Dual Tube Channel) is a high-end, two-channel analog channel strip introduced in the early 2000s. It combines microphone preamplification, equalization, and dynamics processing, making it a versatile tool for both recording and mastering applications. The DTC is renowned for its pristine audio quality and comprehensive feature set, appealing to professional audio engineers and recording enthusiasts. Key Features

• Microphone Preamplifiers: Equipped with high-quality mic preamps featuring custom transformers, the DTC offers a wide bandwidth and low noise floor, ensuring transparent and detailed sound reproduction. The preamps can handle a maximum input of +30dBu with the 20dB pad engaged, and boast an equivalent input noise (EIN) of -131dB, providing ample headroom and clarity.
• Equalization: The unit features a four-band fully parametric equalizer with adjustable high-cut and low-cut filters. Each band operates in parallel, allowing for precise tonal shaping without phase issues. This design facilitates detailed and musical EQ adjustments suitable for a variety of sources.
• Dynamics Processing: The DTC includes a compressor/limiter section that utilizes an opto-coupler and a pair of ECC83 (12AX7) tubes, providing smooth and musical dynamic control. The "Adaptive Response" feature adjusts the attack and release times based on the input signal, ensuring natural compression characteristics.
• Optional Digital I/O: An optional DI-Mod 24/96 high-resolution A-D/D-A converter module is available, offering 24-bit/96kHz digital input and output via AES/EBU, S/PDIF, and ADAT formats. This addition allows the DTC to serve as a high-quality front end for digital workstations or as a mastering processor, facilitating seamless integration into digital setups. *Mod already done.

Sound Profile The Mindprint DTC is acclaimed for its clean and transparent sound, with the tube-driven dynamics section adding subtle warmth and character. The high-quality preamps capture detailed and accurate representations of the source material, while the flexible EQ and compressor sections allow for precise tonal shaping and dynamic control. This combination makes the DTC suitable for a wide range of applications, from tracking vocals and instruments to mastering final mixes. Applications This channel strip is ideal for recording engineers and producers seeking a versatile and high-quality signal processor. Its comprehensive feature set makes it suitable for tracking various instruments and vocals, providing detailed control over tone and dynamics. The optional digital interface enhances its utility in hybrid analog-digital workflows, making it a valuable tool in modern recording environments. Build Quality and Aesthetic The DTC is housed in a robust 3U rackmount chassis with a substantial milled front panel, featuring recessed sections that delineate the control groups. The unit's design reflects a focus on durability and user-friendly operation, with clearly labeled controls and a logical layout. The internal construction includes high-quality components, such as custom transformers and ECC83 tubes, contributing to its reliable performance and longevity. Country of Manufacture Germany Collectibility and Market Value The Mindprint DTC is considered a valuable piece of equipment among audio professionals and enthusiasts. Its high-quality construction, versatile feature set, and excellent sound quality contribute to its desirability. While it may not be as widely recognized as some other high-end channel strips, those familiar with its capabilities often regard it as a hidden gem in the world of audio processing equipment. Its market value remains stable, reflecting its reputation for quality and performance.
