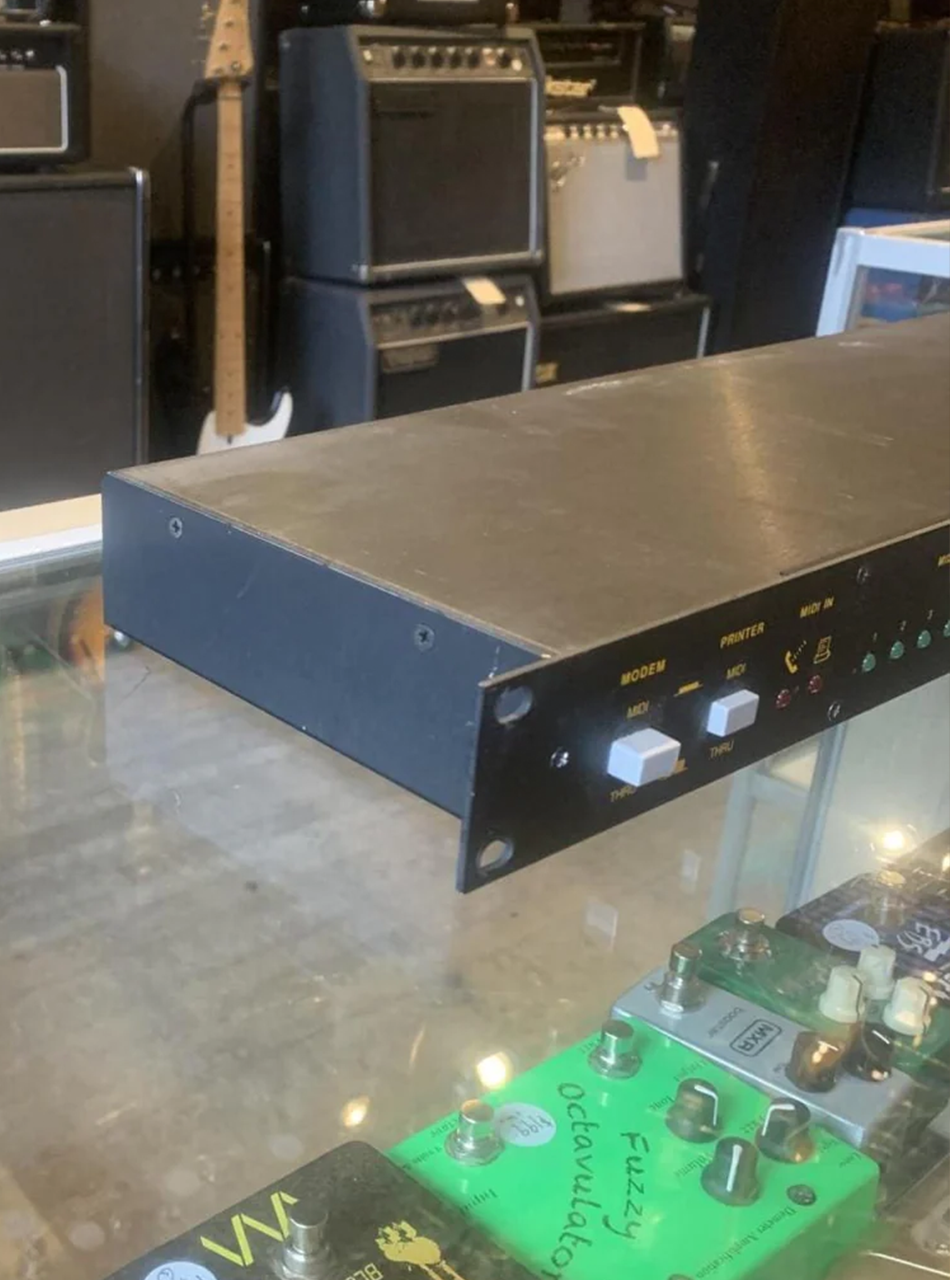

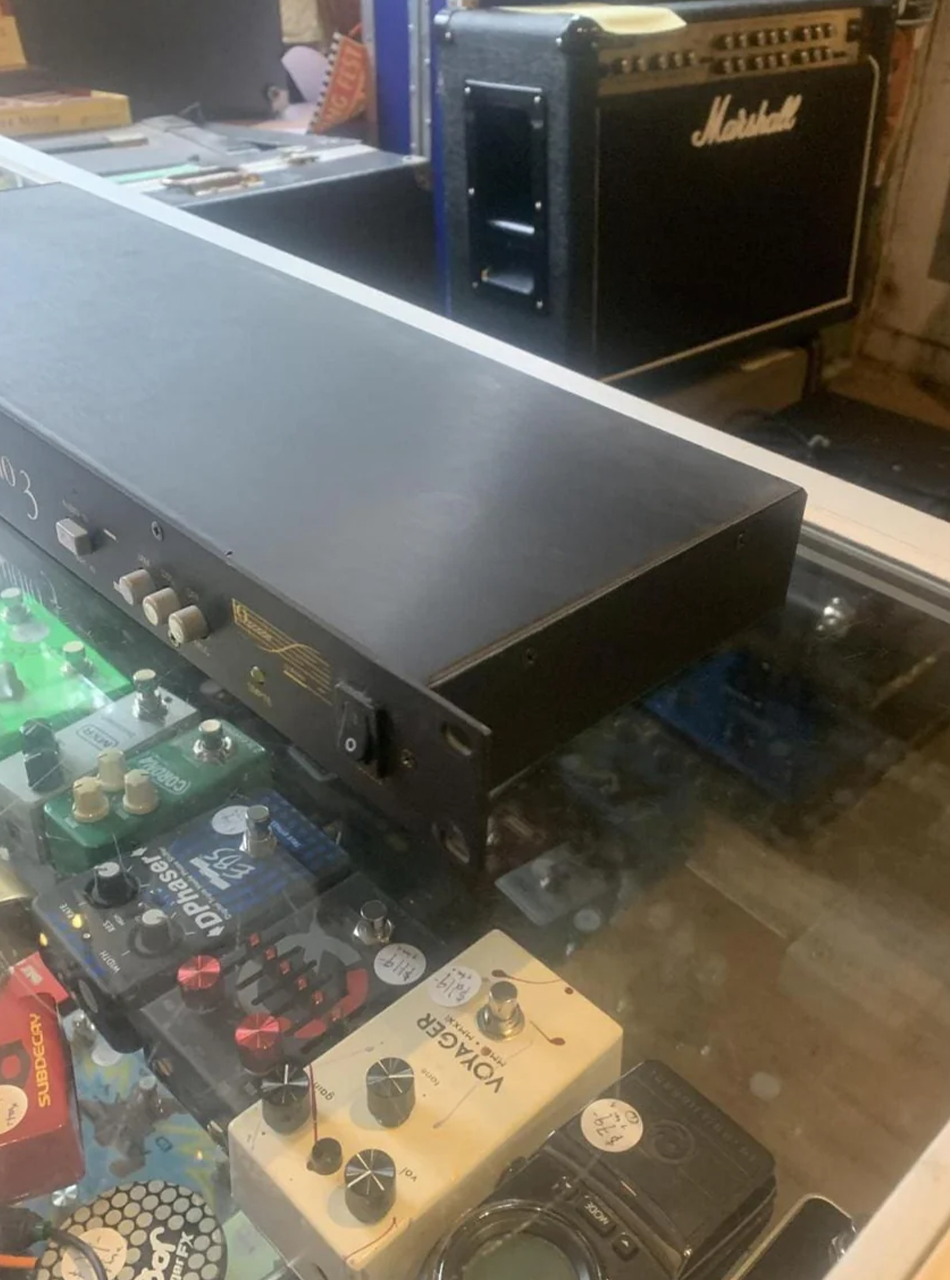

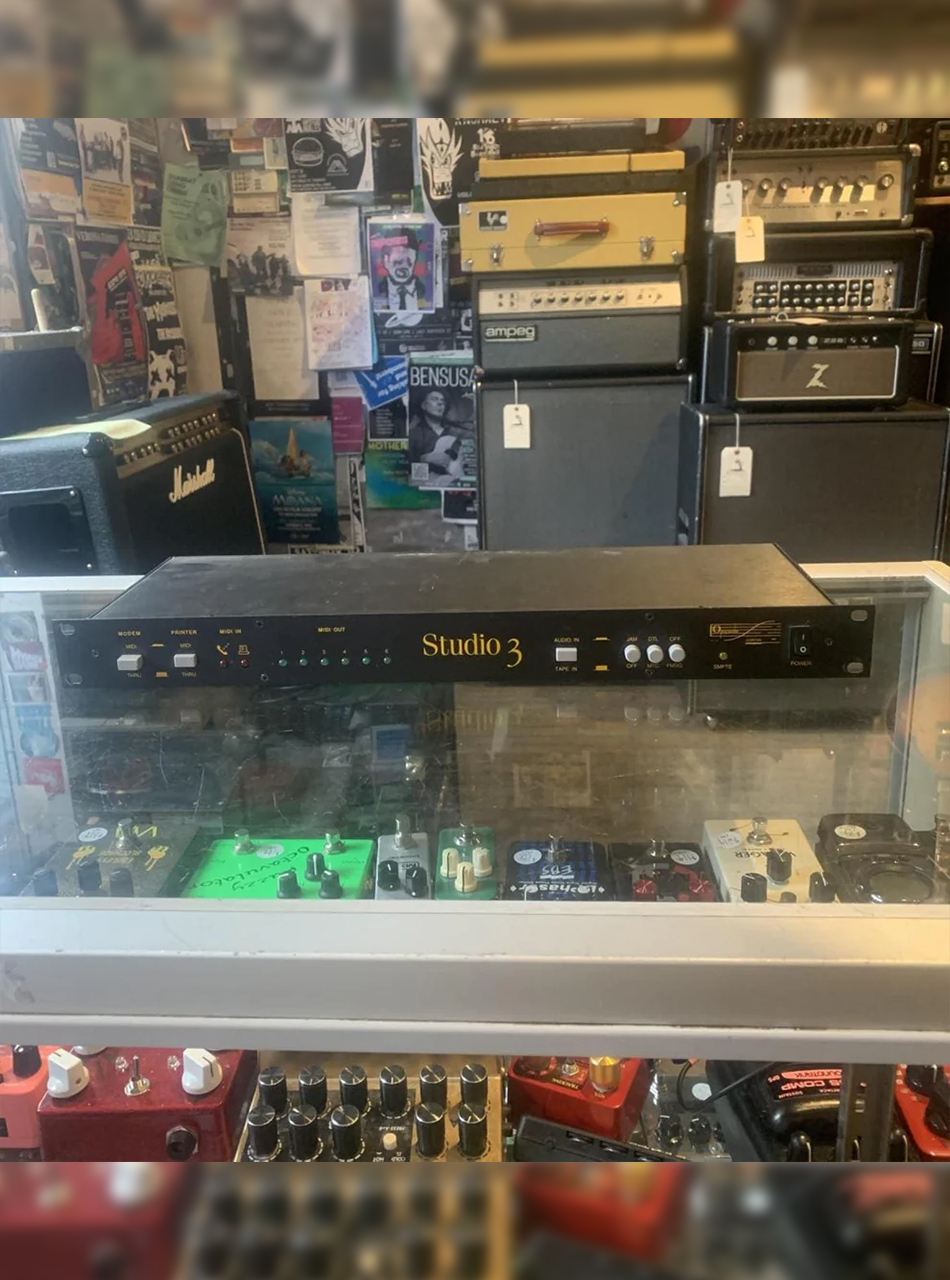

Opcode Studio 3

Type
MIDI Interface / SMPTE & Synchronization Module

Model
Studio 3

Manufacturer
Opcode Systems

Country of Manufacture
USA

Controls / Features

• 2 MIDI inputs

• 6 MIDI outputs

• 2 serial ports

• Supports MTC, DTL, SMPTE synchronization and JamSync

• OMS (Opcode MIDI System) support for Macintosh systems

• Front-panel controls for MIDI routing, sync settings, clock mode

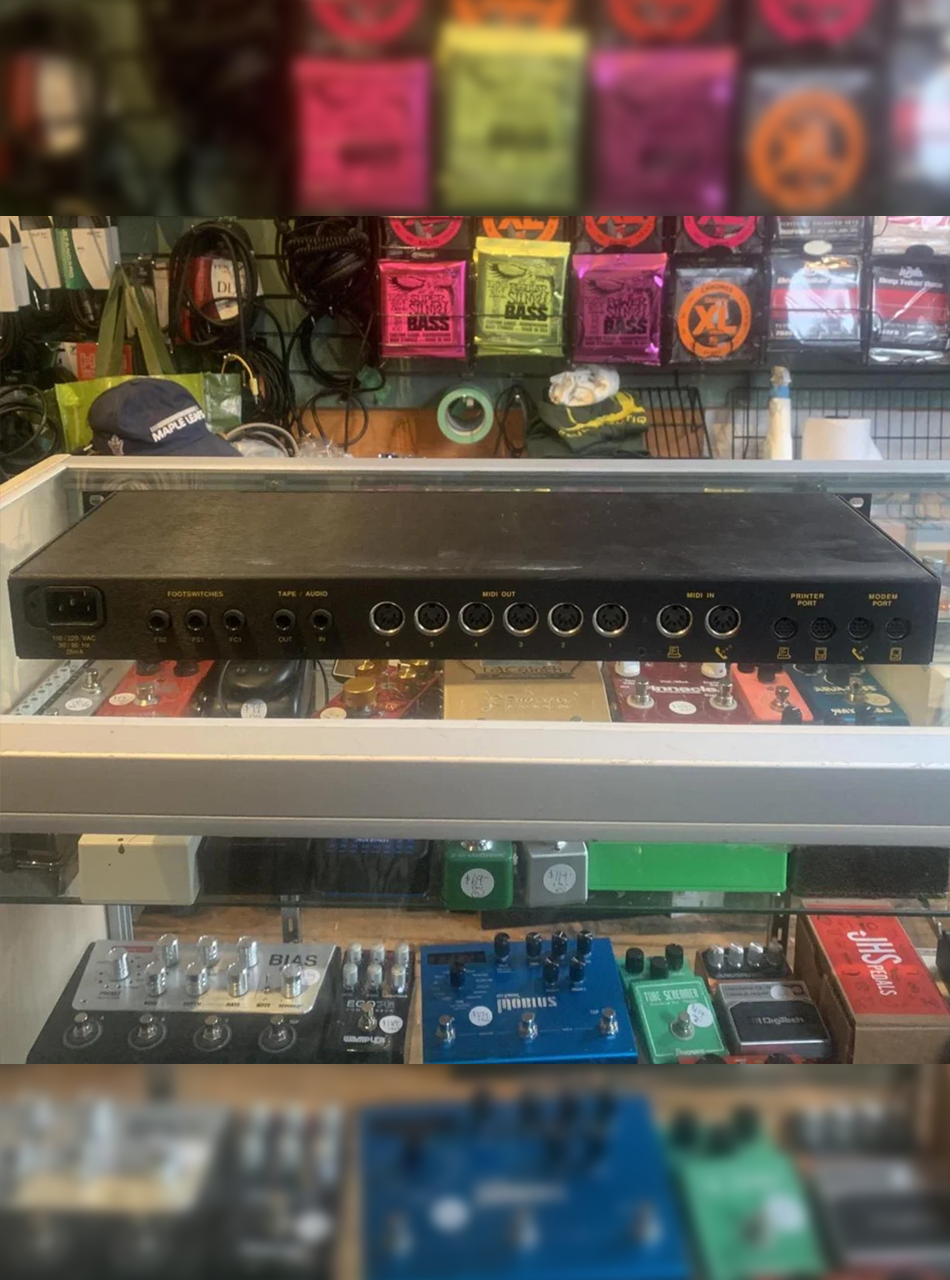

Input
MIDI In, Serial ports

Output
MIDI Out (6), Serial sync signals

Power Supply
IEC AC power

Notable Features

• Routes one MIDI source to multiple outputs with sync support

• Acts as a hub for combining MIDI timing & synchronization across devices

• Widely used in the late 1980s / early 1990s in MIDI studios

• Driver support originally on Mac, with OMS integration
