Description

A 15-watt tube combo amp delivering classic British chime and natural overdrive, ideal for studio and stage use.

Type
Guitar Combo Amplifier

Model
AC15C1

Manufacturer
Vox

Country of Manufacture
China

Year of Introduction
2010

Controls
Master Volume, Master Tone Cut, Reverb, Tremolo Speed, Tremolo Depth, Top Boost Volume, Treble, Bass, Normal Volume, Channel Selector

Input
2× 1/4″ inputs (Normal and Top Boost channels)

Output
1× 1/4″ external speaker out
1× 1/4″ extension speaker out

Wattage
15 watts (all-tube, Class A)

Notable Features

  • Channels: Normal and Top Boost, each with independent volume; shared EQ on Top Boost

  • Tubes: 3× 12AX7 (preamp), 2× EL84 (power), 1× EZ81 rectifier

  • Speaker: 1× 12″ Celestion G12M Greenback

  • Reverb: Built-in spring reverb with dedicated control

  • Tremolo: Built-in tube tremolo with speed and depth controls

  • Tone Cut: Master tone control located in the power amp stage for overall tone shaping

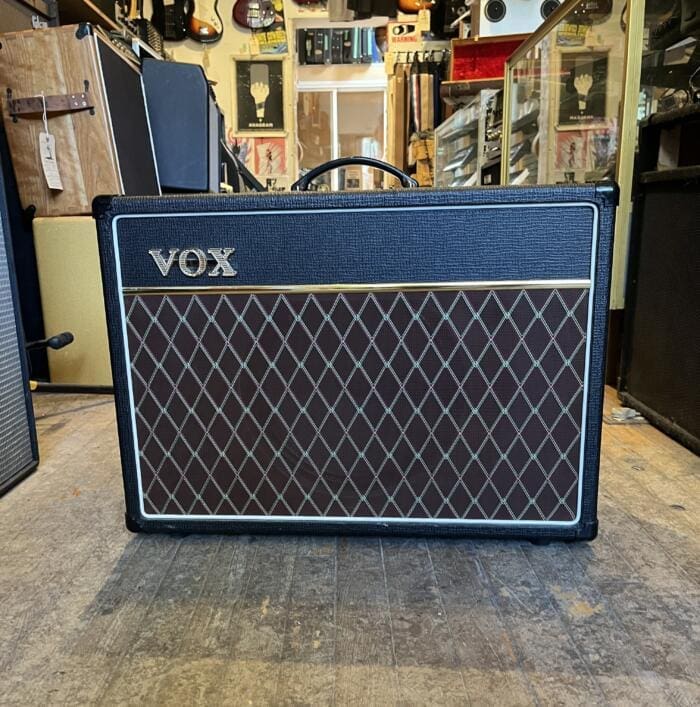

  • Construction: Birch plywood cabinet with Vox diamond grille cloth and top-mounted control panel
