Description

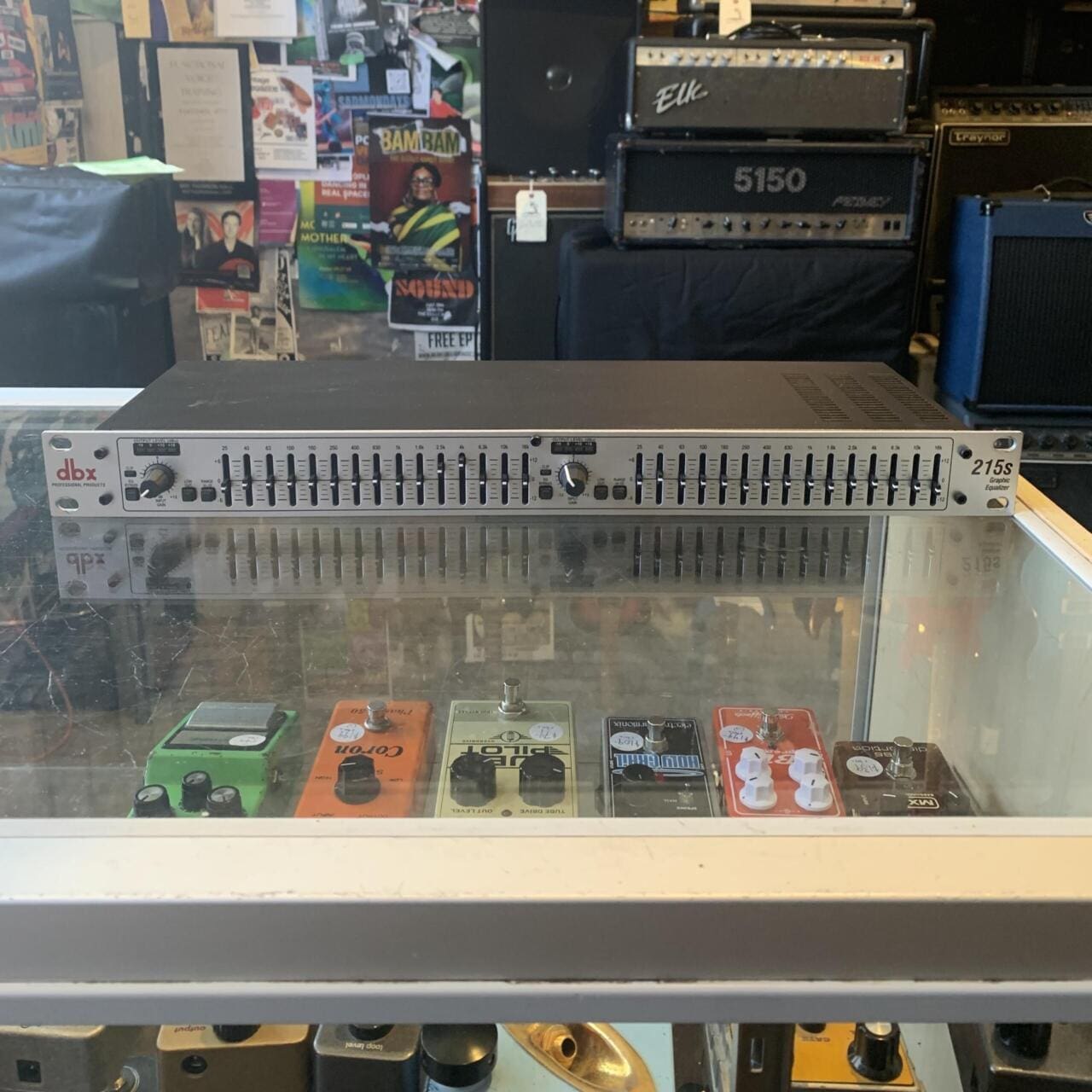

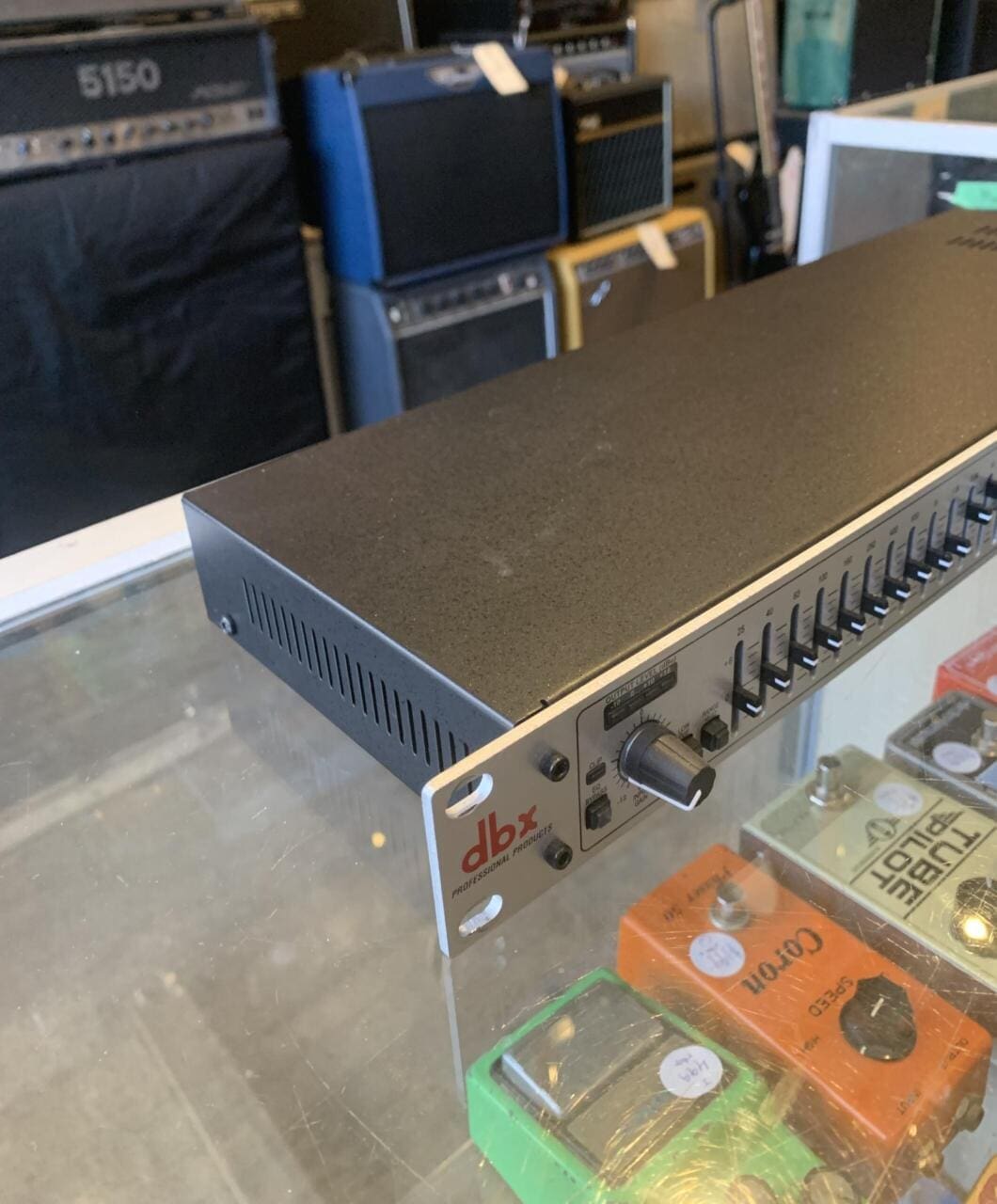

dbx 215s Graphic EQ, $199!

A professional-grade dual-channel 15-band graphic equalizer designed to provide precise tonal control for live sound and studio applications.

Type: Dual-Channel Graphic Equalizer
Model: 215s
Manufacturer: dbx
Country of Manufacture: Not specified
Year of Introduction: Not specified
Frequency Bands: 15 bands per channel, 2/3-octave Constant Q
Gain Range: Switchable ±6 dB or ±12 dB boost/cut
Low Cut Filter: 50 Hz, 12 dB/octave high-pass filter
Inputs:

  • 2 x XLR

  • 2 x 1/4″ TRS
    Outputs:

  • 2 x XLR

  • 2 x 1/4″ TRS
    Controls per Channel:

  • Input gain control (±12 dB)

  • 15 frequency band sliders (20mm nonconductive)

  • Range switch for boost/cut selection

  • Low cut filter activation switch

  • EQ bypass switch
    Metering: 4-segment LED output level meters
    Power Supply: Internal, operating voltage 100-240VAC 50/60Hz
    Wattage: 15W

Notable Features:

  • Extended frequency response from <10 Hz to >50 kHz

  • Dynamic range greater than 108 dB

  • Front panel bypass for quick comparison

  • Rugged construction suitable for touring and installations

  • Balanced inputs and outputs for reduced noise interference
